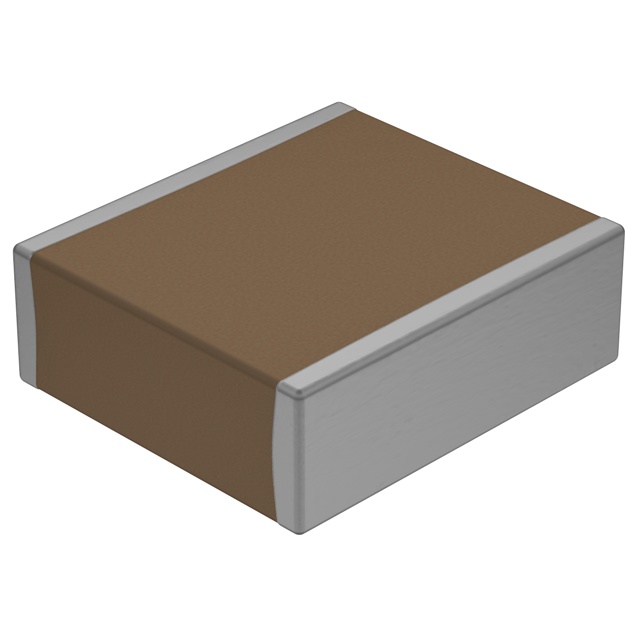

VJ2225Y473MXFAT4X

Manufacturer Part Number: VJ2225Y473MXFAT4X Manufacturer / Brand: Vishay Vitramon
Part of Description: 0.047 µF ±20% 2000V (2kV) Ceramic Capacitor X7R 2225 (5763 Metric) Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

VJ2225Y473MXFAT4X Parameters

Manufacturer Vishay Vitramon
Series VJ OMD
Package Tape & Reel (TR), Cut Tape (CT)
Description CAP CER 0.047UF 2KV X7R 2225
Product Status Active
Manufacturer Standard Lead Time 12 Weeks
Operating Temperature -55°C ~ 125°C
Applications Boardflex Sensitive
Mounting Type Surface Mount, MLCC
Package / Case 2225 (5763 Metric)
Base Product Number VJ2225
Features Soft Termination, High Voltage

The VJ2225Y473MXFAT4X is a ceramic capacitor manufactured by Vishay Vitramon. Here’s an expanded description of this electronic component:

  1. VJ Series: The VJ series by Vishay Vitramon is a line of ceramic capacitors known for their reliability and performance in various electronic applications.
  2. Capacitance Value: The “473” in the part number indicates the capacitance value. In this case, it represents 47,000 pF or 47 nF.
  3. Capacitance Tolerance: The “M” signifies a capacitance tolerance of ±20%, indicating the allowable variance from the specified capacitance value.
  4. Voltage Rating: The “X” in the part number denotes the voltage rating of the capacitor. The exact voltage rating should be checked against the datasheet, but typically, it represents a capacitor suitable for use in low to moderate voltage applications.
  5. Package Size: The “2225” refers to the package size or dimensions of the capacitor. In this context, it is likely a 2225-size capacitor, meaning dimensions of 0.220 inches by 0.250 inches.
  6. Surface Mount Technology (SMT): The “F” in the part number indicates that the capacitor is designed for surface mount applications. It is compatible with SMT processes, making it suitable for automated assembly.
  7. Automotive Grade: The “AT” signifies that the capacitor is designed to meet automotive industry standards, indicating its suitability for use in automotive electronics where reliability and performance are crucial.
  8. RoHS Compliance: As a modern electronic component, it is likely that the VJ2225Y473MXFAT4X is compliant with the Restriction of Hazardous Substances (RoHS) directive, which restricts the use of certain hazardous materials in electronic products.

Vishay Vitramon capacitors are widely used in various electronic circuits, and the VJ series, in particular, is chosen for its quality and suitability for different environmental conditions. For detailed specifications and performance characteristics, it is recommended to refer to the datasheet provided by Vishay Vitramon.
