Encoders

ALL Electronic Components

Categories

Result: 3

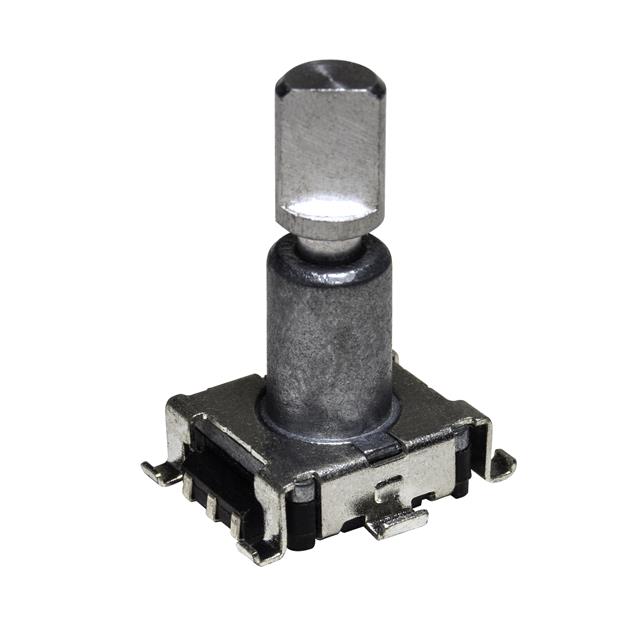

PEC11J 9120F H0009

PEC11J-9120F-H0009

Quote:

PEC11J 9220F H0015

PEC11J-9220F-H0015

Quote:

PEC11J 9120F S0009

PEC11J-9120F-S0009

Quote:

Encoders are devices designed to convert mechanical motion into electrical signals that can be interpreted by electronic systems. They play a crucial role in various applications, providing precise feedback on position, speed, and direction. Encoders come in different types, each catering to specific needs and requirements:

Rotary Encoders:

Definition: Rotary encoders are devices that convert the angular position or rotation of a shaft into an electrical signal. They are commonly used to measure the rotational position of knobs, wheels, or other rotating objects in machinery and electronic devices.

Incremental Encoders:

Definition: Incremental encoders provide information about the movement or position changes but do not specify the absolute position. They generate pulses or counts based on the incremental movement, making them suitable for applications where relative position is sufficient.

Absolute Encoders:

Definition: Absolute encoders provide information about the absolute position of a shaft or object. They offer a unique binary or Gray code for each position, allowing the system to determine the exact position without needing a reference point.

Optical Encoders:

Definition: Optical encoders use light to detect movement. They typically consist of a light source, a rotating disk with patterns or slots, and a photo-detector to convert the light changes into electrical signals. These are widely used for their accuracy and reliability.

Magnetic Encoders:

Definition: Magnetic encoders utilize magnetic fields to detect movement. They are known for their durability and resistance to environmental factors, making them suitable for harsh operating conditions.

Linear Encoders:

Definition: Linear encoders measure linear or straight-line movement. They are commonly used in applications where the motion is along a straight path rather than rotational.

Quadrature Encoders:

Definition: Quadrature encoders produce two sets of signals that are 90 degrees out of phase. This feature allows the detection of both the direction and the speed of movement. Encoders find extensive use in robotics, industrial automation, CNC machinery, computer peripherals, and various other fields where accurate position sensing is essential. Their versatility and precision contribute to improved performance and control in numerous electronic systems.
