Result: 3
BLH03HG901SN1D
- Murata Electronics
- EMI Filters / EMI Suppression
- New original
-
Data sheet:
BLH03HG901SN1D Datasheet
Quote:

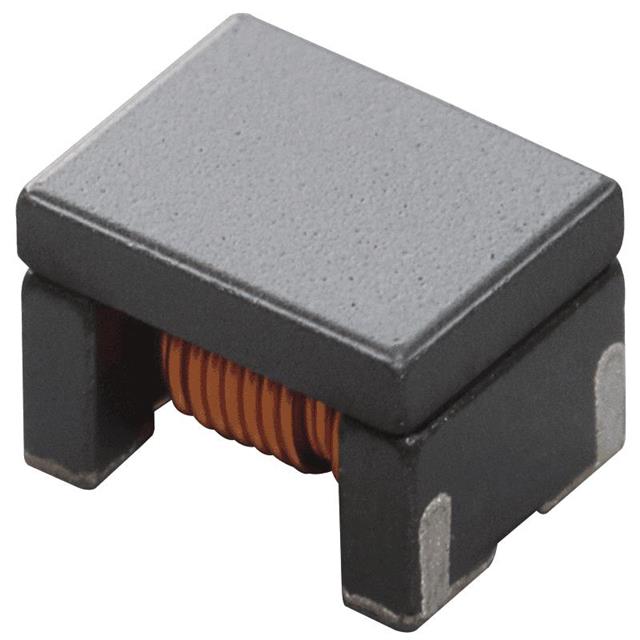

DLW32PH122XK2L
- Murata Electronics
- EMI Filters / EMI Suppression
- New original
-
Data sheet:
DLW32PH122XK2L Datasheet
Quote:

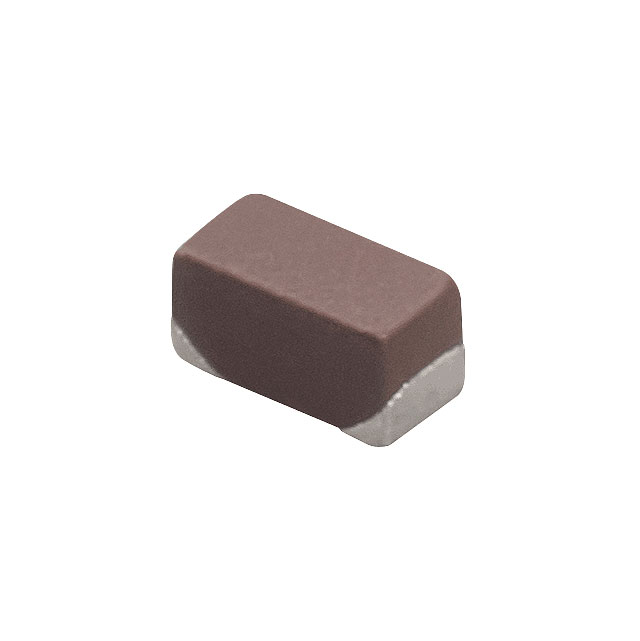

BLH03HA400SN1D
- Murata Electronics
- EMI Filters / EMI Suppression
- New original
-
Data sheet:
BLH03HA400SN1D Datasheet
Quote:
Ferrite is a type of ceramic compound, primarily composed of iron oxide (Fe2O3) and other metal oxides. These materials exhibit unique magnetic and electrical properties, making them essential components in various electronic devices. The term "ferrites" is commonly associated with several key electronic components:
Ferrite Beads:
Definition: Ferrite beads are passive electronic components made from ferrite material. They are often used to suppress electromagnetic interference (EMI) in electronic circuits by introducing a resistive load at higher frequencies.
Ferrite Cores:
Definition: Ferrite cores are magnetic cores made of ferrite material. They are frequently employed in transformers and inductors to enhance magnetic coupling and increase inductance. Ferrite cores are highly effective in mitigating electromagnetic interference.
Ferrite Inductors:
Definition: Ferrite inductors are inductors that incorporate ferrite cores. The presence of ferrite enhances the inductance of these components, and they are commonly used in applications such as power supply circuits.
Ferrite Transformers:
Definition: Ferrite transformers are transformers that utilize ferrite cores. The inclusion of ferrite improves the efficiency of the transformer, making it suitable for high-frequency applications, especially in switch-mode power supplies.
Ferrite Plates:
Definition: Ferrite plates are flat pieces of ferrite material strategically placed in electronic devices to reduce electromagnetic interference.
Ferrite Circulators:
Definition: Ferrite circulators are microwave devices that use ferrite material to achieve non-reciprocal transmission of signals. They are commonly employed in radio frequency (RF) and microwave systems for signal isolation and directional transmission.
The magnetic properties of ferrite materials, coupled with their ability to suppress high-frequency interference, make them versatile and crucial in the field of electronic components. They contribute to the effective operation of various electronic devices and systems.
