Manufacturer Part Number: TCA9517 Manufacturer / Brand: Texas Instruments
Part of Description: Interface - Signal Buffers, Repeaters Level-Translting I2C Bus Repeater Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer Texas Instruments
Series TCA9517
Package Reel
Product Status Active
Manufacturer Standard Lead Time 6 Weeks
Function Repeaters
Product Type Signal Buffers, Repeaters

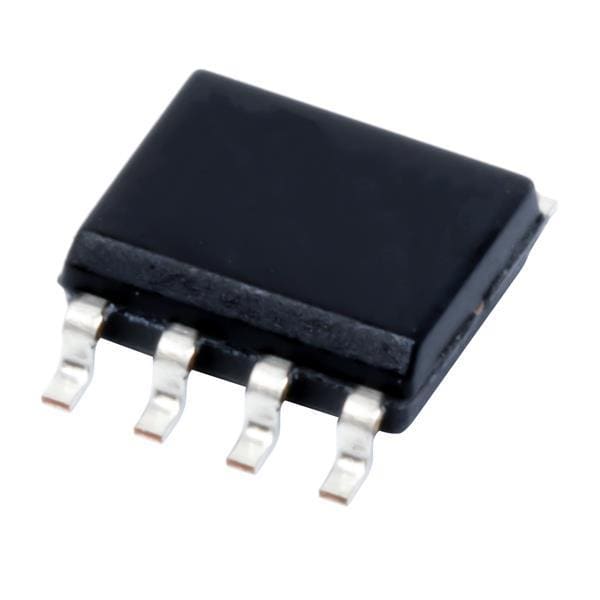

Package / Case SOIC-8
Supplier Device Package SOIC-8
Base Product Number TCA9517
Voltage – Supply 2.7 V ~ 5.5 V

The TCA9517 is an I2C level converter and signal reconstructor chip. It can assist in solving the problem of level mismatch between different I2C buses. The chip supports bi-directional cascade conversion from and to two different I2C buses, as well as level shifting and signal reconstruction. With the TCA9517, you can communicate between I2C devices with different levels without worrying about the problems that level mismatch may cause.
In addition, the TCA9517 has a function to prevent SCL and SDA line conflicts, which can effectively protect the integrity of the bus. The chip operates in both standard and fast modes and supports transmission rates of 100 kHz in standard mode and 400 kHz in fast mode.
Overall, the TCA9517 is a very useful chip for simplifying communication between I2C devices with different levels and providing signal reconfiguration and conflict prevention.
