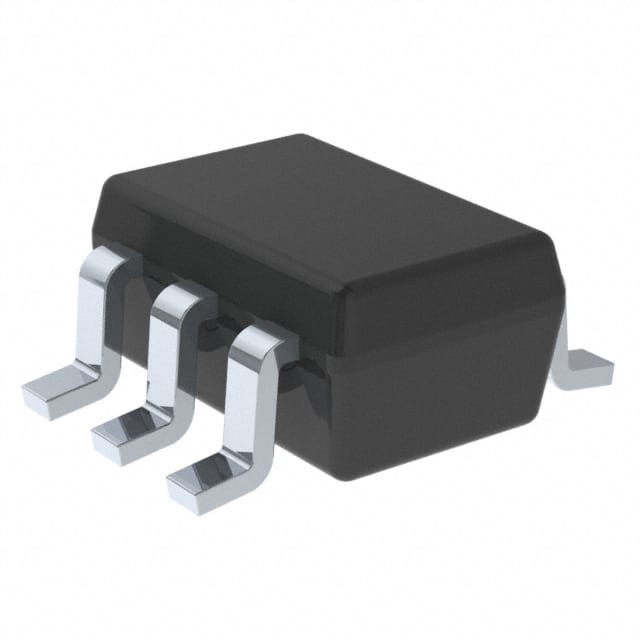

SN74LVC1G3157DCKR

Manufacturer Part Number: SN74LVC1G3157DCKR Manufacturer / Brand: Texas Instruments
Part of Description: 1 Circuit IC Switch 2:1 15Ohm SC-70-6 Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer Texas Instruments
Manufacturer Standard Lead Time 6 Weeks
Series 74LVC
Package Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Description IC SWITCH SPDT X 1 15OHM SC70-6
Product Status Active
Switch Circuit SPDT
Multiplexer/Demultiplexer Circuit 2:1
Number of Circuits 1
On-State Resistance (Max) 15Ohm
Channel-to-Channel Matching (ΔRon) 100mOhm
Voltage – Supply, Single (V+) 1.65V ~ 5.5V
Voltage – Supply, Dual (V±)
Switch Time (Ton, Toff) (Max) 5.7ns, 3.8ns
-3db Bandwidth 340MHz
Charge Injection 7pC
Channel Capacitance (CS(off), CD(off)) 5.2pF
Current – Leakage (IS(off)) (Max) 1µA
Crosstalk -54dB @ 10MHz
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
Base Product Number 74LVC1G3157

This device is specifically engineered for analog signal switching, ensuring minimal signal distortion and maintaining signal integrity in applications where precise analog signal paths are crucial.

With a single channel, the switch is designed to handle one input signal that can be directed to one of two output paths, or vice versa, facilitating signal selection in various circuit configurations.

Housed in a compact DCKR package, the SN74LVC1G3157DCKR is suitable for applications with space constraints, allowing for efficient integration into electronic designs with limited board space.
