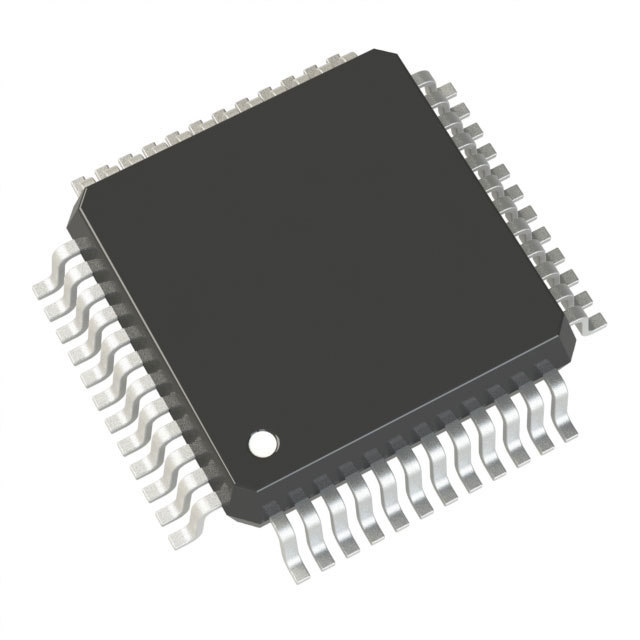

Manufacturer Part Number: MC9S08DZ60ACLF Manufacturer / Brand: NXP Semiconductors
Part of Description: IC MCU 8BIT 60KB FLASH 48LQFP Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer NXP USA Inc.
Series S08
Package Tray
Description S08 S08 Microcontroller IC 8-Bit 40MHz 60KB (60K x 8) FLASH 48-LQFP (7×7)
Manufacturer Standard Lead Time 26 Weeks
Product Status Active
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 48-LQFP
Supplier Device Package 48-LQFP (7×7)
Base Product Number MC9S08
Product Type: 8-bit Microcontrollers – MCU

The MC9S08DZ60ACLF, an 8-bit microcontroller developed by NXP Semiconductors, belongs to the MC9S08DZ series. With a robust set of peripherals and based on the HCS08 core architecture, this microcontroller is designed for a variety of embedded applications. It features 60KB of Flash memory for program storage, 4KB of RAM for data storage, and incorporates integrated peripherals to interface with external components. The HCS08 core ensures efficient 8-bit processing capabilities.
