Home > Products > Semiconductors > LMX2694SRTCTSEP


Competitive Pricing
Manufacturer Part Number: LMX2694SRTCTSEP Manufacturer / Brand: Texas Instruments
Part of Description: IC FREQ SYNTH 48VQFNP Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS

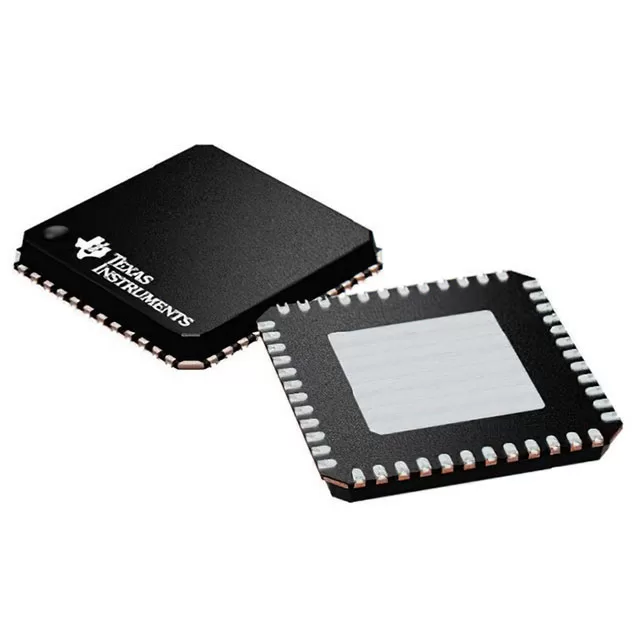

Kind tips: The pictures are for reference only, the actual product shall prevail. In-Stock: 1,000
Stock: Can Ship within 1 Week Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer Texas Instruments
Package Box
Description Frequency Synthesizer IC 39.3MHz, 15.1GHz 1 48-VFQFN Exposed Pad
D/C Within 2 Years
Product Status Active
Type Frequency Synthesizer
Frequency – Max 39.3MHz, 15.1GHz
Divider/Multiplier Yes/No
Voltage – Supply 3.2V ~ 3.45V
Operating Temperature -55°C ~ 125°C (TC)
Package / Case 48-VFQFN Exposed Pad

The LMX2694SRTCTSEP is a highly versatile frequency synthesizer and PLL IC from Texas Instruments, capable of generating frequencies spanning from 10 MHz to 15 GHz. It excels in providing stable and low phase noise output, crucial for maintaining signal integrity in RF and microwave applications. Featuring a fractional-N PLL with a high-resolution sigma-delta modulator, it offers precise frequency synthesis and modulation capabilities. The IC supports easy integration with digital systems through interfaces like SPI, making it suitable for use in wireless infrastructure, radar systems, test and measurement equipment, and other high-frequency communication applications that demand reliable and accurate frequency generation.
