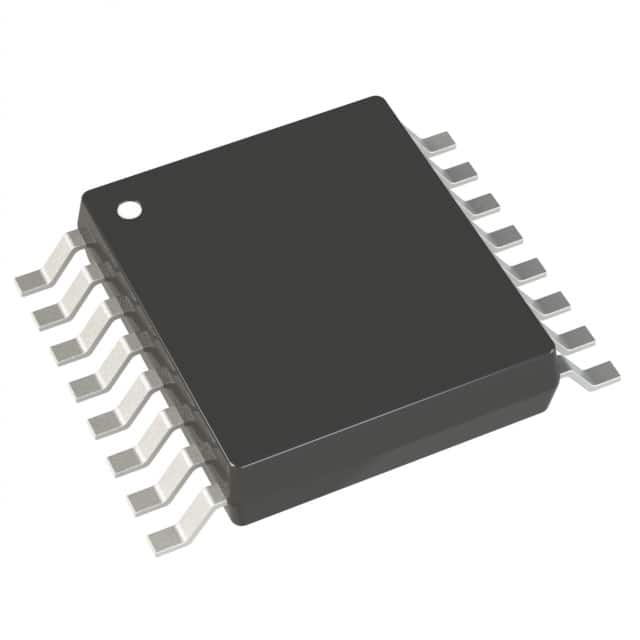

ADG1409YRUZ-REEL7

Manufacturer Part Number: ADG1409YRUZ-REEL7 Manufacturer / Brand: Analog Devices Inc.
Part of Description: 2 Circuit IC Switch 4:1 4.7Ohm 16-TSSOP Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer Analog Devices Inc.
Manufacturer Standard Lead Time 26 Weeks
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Description IC SWITCH SP4TX2 4.7OHM 16TSSOP
Product Status Active
Switch Circuit SP4T
Multiplexer/Demultiplexer Circuit 4:1
Number of Circuits 2
On-State Resistance (Max) 4.7Ohm
Channel-to-Channel Matching (ΔRon) 200mOhm
Voltage – Supply, Single (V+) 5V ~ 16.5V
Voltage – Supply, Dual (V±) ±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max) 120ns, 120ns
-3db Bandwidth 115MHz
Charge Injection -50pC
Channel Capacitance (CS(off), CD(off)) 14pF, 40pF
Current – Leakage (IS(off)) (Max) 200pA
Crosstalk -70dB @ 1MHz
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-TSSOP (0.173″, 4.40mm Width)
Supplier Device Package 16-TSSOP
Base Product Number ADG1409

The ADG1409YRUZ-REEL7 finds applications in diverse industries, including telecommunications, audio processing, medical equipment, and test and measurement instruments. Its versatile performance and differential signal handling capabilities make it a versatile component in various electronic systems.
Experience the benefits of precise and low-distortion signal routing with the ADG1409YRUZ-REEL7. Whether you’re designing audio interfaces, measurement instruments, or communication systems, this multiplexer is engineered to meet the stringent demands of high-performance applications.
