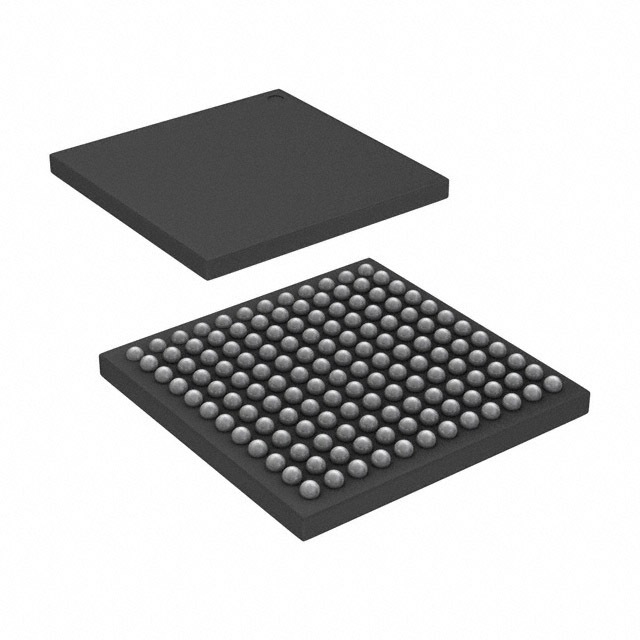

AD9361BBCZ

Manufacturer Part Number: AD9361BBCZ Manufacturer / Brand: Analog Devices Inc
Part of Description: IC RF TXRX CELLULAR 144LFBGA Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer Analog Devices Inc.
Package Tray
Description IC RF TxRx Only Cellular LTE 70MHz ~ 6GHz 144-LFBGA, CSPBGA
Type LTE, WiMAX
Frequency Range 70 MHz to 6 GHz
Supply Voltage 1.267 V to 1.33 V
Output Power 8 dBm
Moisture Sensitive Yes
Sensitivity 2.5 dB
Unit Weight 0.029630 oz
Interface Type 3-Wire, 4-Wire, SPI
Modulation Format: TDD, FDD
Product Status Active
Operating Temperature -40°C ~ 85°C
Mounting Style SMD/SMT
Package / Case 144-LFBGA, CSPBGA
Supplier Device Package 144-CSPBGA (10×10)
Base Product Number AD9361
Number of Receivers 2
Number of Transmitters 2
Product Type: RF Transceiver

The AD9361BBCZ is an integrated RF transceiver designed by Analog Devices. It’s known for its versatility and is widely used in software-defined radio (SDR), wireless communication systems, and cellular infrastructure. This transceiver offers high performance and integrates RF front-end, analog-to-digital, and digital-to-analog converters in a single chip. It operates over a wide frequency range and supports various modulation schemes, making it suitable for a range of wireless communication applications.
