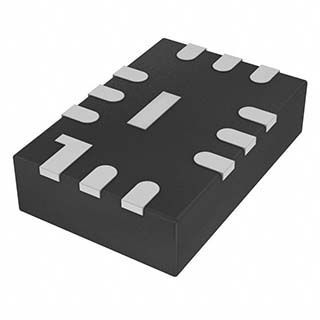

LTC5549IUDB#TRPBF

Competitive Pricing

Part Number: LTC5549IUDB#TRPBF	Manufacturer: Analog Devices Inc.
In-Stock: 2500 pcs	DC: 22+
Description: RF Mixer 2GHz to 14GHz Microwave Mixer 12QFN 500MHz to 6GHz 115 mA	Datasheets: LTC5549IUDB#TRPBF Datasheet
100% original and authentic 100% test report if single part is over 500USD 100% damaged replacement guaranteed

LTC5549IUDB#TRPBF Specifications

Product Type:	RF Mixer
Manufacturer:	Analog Devices
OIP3 – Third Order Intercept:	20.2 dBm
Operating Supply Current:	115 mA
Operating Supply Voltage:	3.3 V
P1dB – Compression Point:	14.3 dBm
RF Frequency:	2 GHz to 14 GHz
Conversion Loss – Max:	8 dB
NF – Noise Figure:	7.9 dB
LO Frequency:	1 GHz to 12 GHz
IF Frequency:	500 MHz to 6 GHz
Operating Temperature:	– 40 ℃ to + 105 ℃
Development Kit:	DC2310A
Mounting Style:	SMD/SMT
Package / Case:	QFN-12
Packaging:	Reel

The LTC5549IUDB#TRPBF is a high-performance, wideband RF mixer from Analog Devices, optimized for upconversion or downconversion applications. This active mixer offers exceptional linearity and low noise, making it ideal for communication systems.
